Electrical riser diagrams in Revit: 4 workflows compared

TL;DR

MEP engineers use detail lines, filtered views, CAD links or custom scripts to create electrical riser and single-line diagrams. All of the approaches can work but each comes with its own limitations. Electrical single line diagram software such as Electrical Pack, for its part, generates schematics directly from the electrical data already inside the Revit model.

Terminology note: An electrical riser diagram shows how power is distributed through a building, while a single-line diagram (SLD) is a simplified representation of an electrical system using single lines. Given that electrical riser diagrams are commonly presented in a single-line format, the terms sometimes overlap. In this article, we use “electrical riser diagram” for the overall building distribution schematic and “single-line diagram” when referring to the schematic format or the diagram generated by a tool.

Why are electrical riser diagrams still a challenge in Revit?

Revit stores extensive information about an electrical system. Electrical equipment, circuits, loads, panel relationships and other system data are part of the model, and Revit can use this information in panel schedules, circuit paths and other forms of electrical documentation. Yet, translating those relationships into a readable electrical riser diagram can be quite challenging.

A schematic follows its own graphic logic. Panels must be arranged in a logical hierarchy, feeders and circuits need consistent representation, and connected equipment must display in a sequence that is easy to follow. Revit contains enough electrical information to support a system diagram but it does not provide a dedicated native workflow for automatically generating and maintaining a live schematic from that data.

For MEP engineers and BIM managers, it results in certain MEP coordination issues, extra drafting work, manual updates and diagrams that can become inconsistent with the underlying model.

4 ways to create electrical riser diagrams

The approaches below cover some of the most common ways teams create or approximate electrical riser diagrams and other single-line schematics when working with Revit. Noteworthy, though, is that none of them is perfect and comes with certain drawbacks.

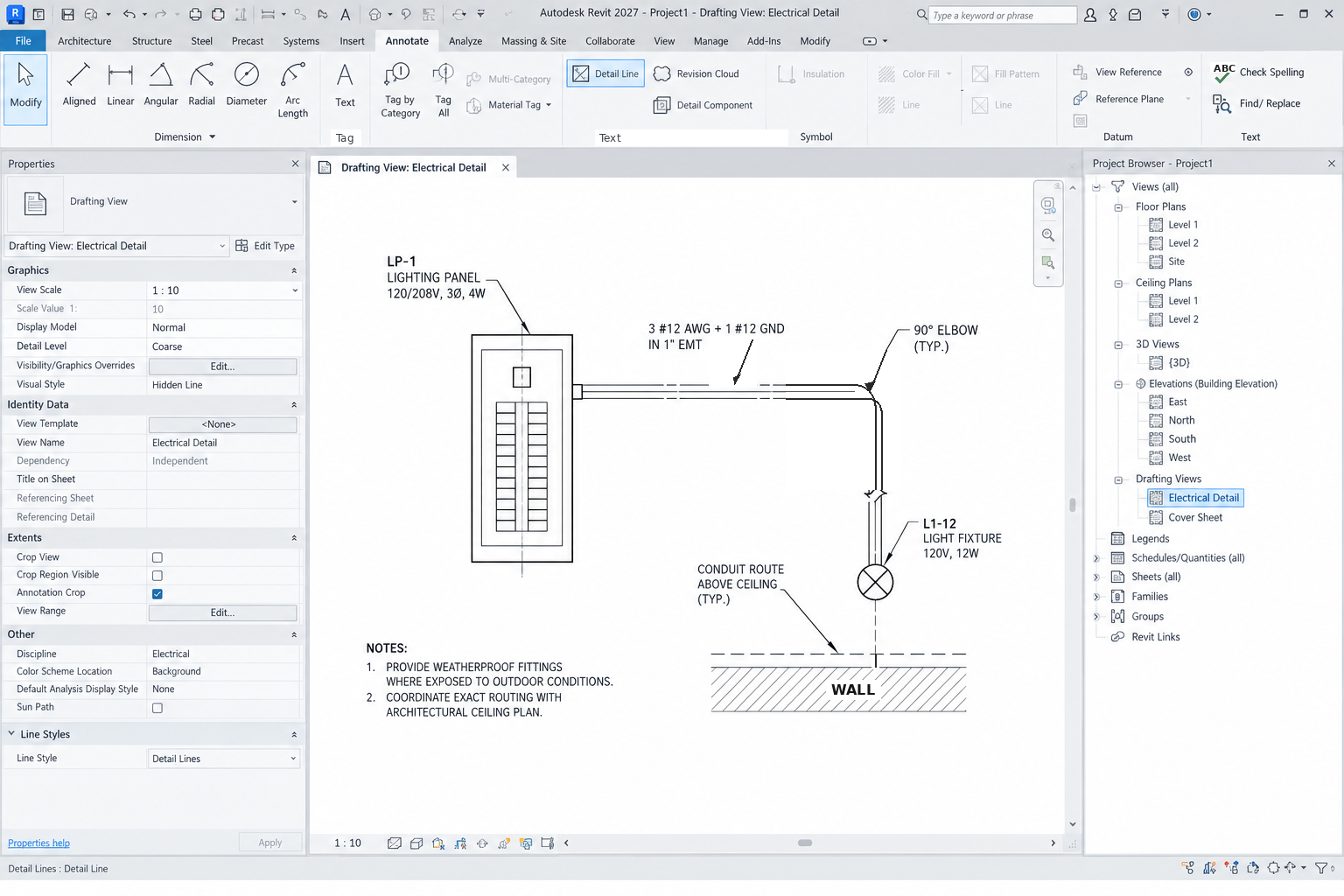

1. Detail lines in Revit

With detail lines, it’s possible to draw a diagram directly in a Revit view. Autodesk describes them as view-specific lines used to provide additional information in detail and drafting views. These are useful when engineers need simple graphics or annotations without adding new model geometry.

For a small diagram, this can be perfectly practical since an engineer can create the required lines, arrange symbols or annotations around them and keep the finished graphic inside the Revit project. The workflow also avoids introducing a separate CAD file when the diagram is primarily needed for project documentation.

The limitation, however, is that the lines themselves are graphical elements, not electrical relationships. Autodesk notes that detail lines are view-specific, which means they belong to the view in which they were created. If a panel or piece of equipment moves in the model, a manually drawn detail line doesn’t automatically update its position or electrical connection.

Advantages of detail lines in Revit:

• Quick creation of simple diagrams
• Graphics kept within the Revit project
• No additional software or custom code required
• Direct control over the diagram’s appearance

Potential drawbacks of detail lines in Revit:

• No direct relationship between drawn lines and electrical equipment
• Manual updates after changes to the model
• View-specific graphics
• Increasing maintenance effort as diagrams become larger or more detailed

Summary: Detail lines are a reasonable option for small and relatively stable diagrams or for adding simple schematic information to a Revit view. They become difficult to maintain when the diagram needs to follow frequent changes in panels, feeders, equipment or circuit relationships because the graphical elements have no direct connection to those model relationships.

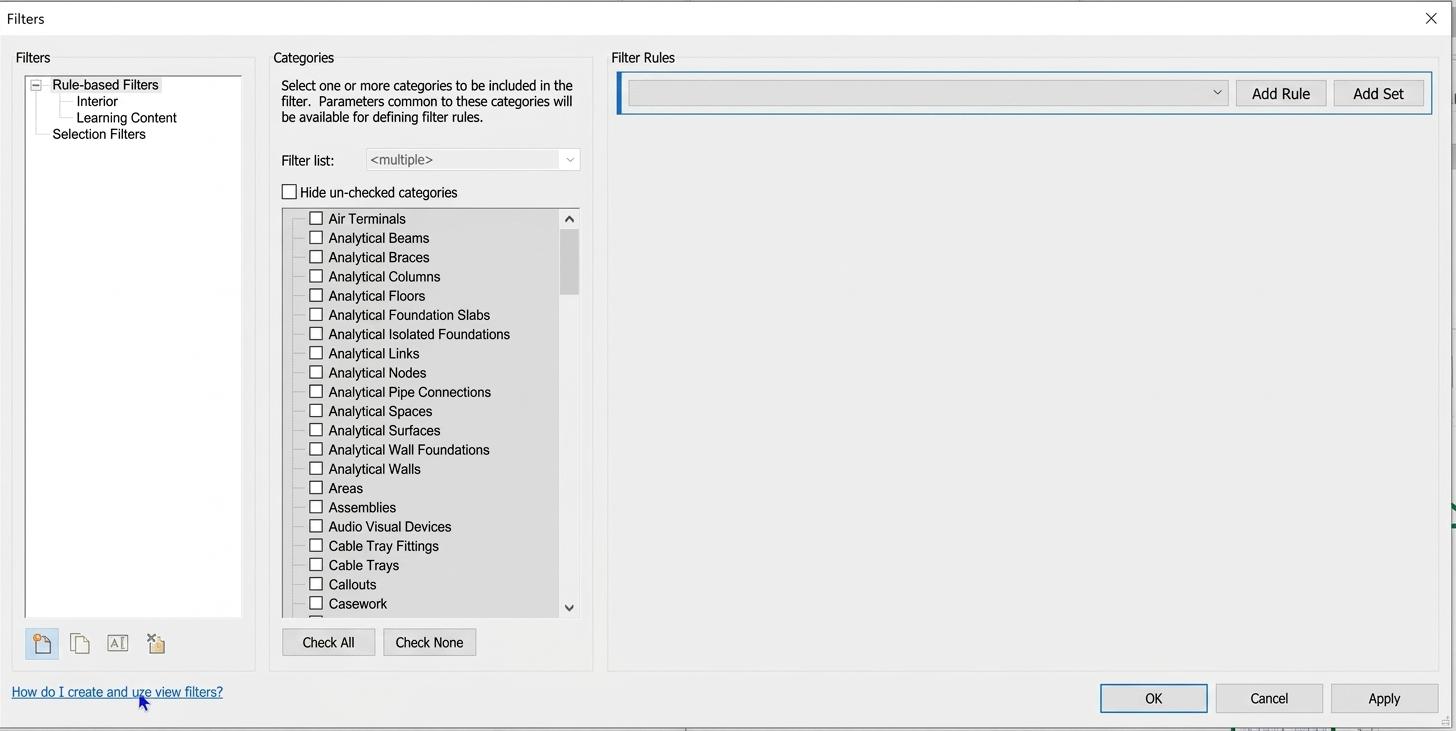

2. Isometric views and Revit filters

Another option is to use the Revit model itself as the basis for a simplified electrical view. This is not a conventional single-line diagram workflow but it can provide a model-based representation of electrical equipment and physical distribution paths.

Engineers can create an isometric or other 3D view and use Visibility/Graphics settings and filters to control which elements are shown and how they appear. Revit filters can apply rules to elements within selected categories based on parameter values, then control their visibility or graphic overrides in a view.

This method has a useful advantage, i.e., the visible equipment is still model geometry. Engineers can work with elements already present in the project and create a view that communicates the electrical system.

However, an isometric model view is different from a purpose-built single-line diagram. The more specific the graphic requirements become, the more view configurations may be needed. Filters also depend on consistent categories and parameters. This means that, for instance, if different families use different parameters or need different display rules, maintaining the view can take some extra effort and time.

Advantages of isometric views and Revit filters:

• Use of actual Revit model elements
• Changes to model geometry are reflected in the view
• Filtering by electrical categories or parameters
• Useful spatial context from the 3D model
• No separate CAD drawing to maintain

Potential drawbacks of isometric views and Revit filters:

• Careful view and filter configuration required
• Dependence on consistent family categories and parameters
• Additional setup for custom families
• Model-based representation rather than a dedicated SLD layout
• Repeated adjustments as project standards change

Summary: Isometric views and filters are suitable when the goal is to show electrical equipment and physical risers across building elevations. They are less suited to a conventional single-line diagram where the engineer needs a purely topological hierarchy independent of the physical position of equipment.

3. AutoCAD or a linked DWG

The external CAD workflow remains a long-established approach in MEP design. Engineers can use existing block libraries, dynamic blocks, external references (Xrefs), and AutoLISP routines to draft a single line diagram Revit deliverable inside AutoCAD, then link the resulting DWG file into a designated Revit drafting view.

The workflow is based on decades of existing CAD standards, block libraries and user familiarity. Senior engineers and CAD technicians can efficiently work in a familiar environment without needing advanced Revit modeling skills.

The issue, however, is that the CAD drawing and Revit model remain separate authoring environments. Updating the DWG can update the linked graphics in Revit but the CAD diagram does not automatically become a representation of Revit’s electrical system data. The team still needs a process for keeping the two workflows coordinated.

Advantages of AutoCAD or a linked DWG:

• Mature drafting environment for electrical diagrams
• Large electrical symbol library in AutoCAD Electrical
• Reuse of existing company CAD standards and libraries
• Familiar workflow for engineers and CAD technicians
• Linked DWG updates reflected in the Revit project

Potential drawbacks of AutoCAD or a linked DWG:

• Separate authoring environments for the diagram and Revit model
• Changes managed across two workflows
• No automatic connection between CAD geometry and Revit electrical data
• Additional version and file-ownership management
• Extra software and project file to manage

Summary: AutoCAD remains a practical choice when an electrical team already has established CAD standards, libraries and drafting expertise. The main limitation is the boundary between the two systems. The AutoCAD to Revit workflow can bring the drawing into the Revit project but it does not make the DWG a live representation of the Revit electrical system.

4. Dynamo and pyRevit automation

Dynamo is included with Revit and provides a visual programming environment for customizing building information workflows. The Revit-specific nodes in it can work with model elements and parameters, which allows for automating repetitive tasks.

pyRevit, for its part, provides another route for custom tools. Its documentation describes it as a ‘rapid application development environment for Revit’, which allows teams to create their own tools using Python (IronPython or CPython), C#, or VB.Net. Custom extensions can be distributed through the pyRevit environment and used as part of a company’s Revit workflow.

For a company with mature BIM automation expertise, this can be a powerful option. A team can build a script around its own electrical standards and automate very specific tasks, including diagram generation or data extraction. Dynamo Player also allows users to run prepared graphs from within Revit without having to work directly in the Dynamo interface.

The main consideration here is maintenance. Given that a custom graph or script becomes part of the company’s internal toolset, someone on the team needs to test it, troubleshoot it and update it when project standards, Revit versions, families or underlying nodes change.

Advantages of Dynamo and pyRevit automation:

• Automation of repetitive diagram-related tasks
• Direct access to Revit model data
• Customization for company-specific electrical standards
• Control over the automation logic
• Support for workflows that are too specific for off-the-shelf tools

Potential drawbacks of Dynamo and pyRevit automation:

• Initial development time and technical expertise
• Ongoing graph and script maintenance
• Updates required when Revit or Dynamo changes
• Dependence on custom families and project standards
• Concentration of technical knowledge among a small number of developers or BIM specialists

Summary: Dynamo and pyRevit are a strong option for companies that have the technical resources to develop and maintain their own Revit automation. They can create a highly customized workflow but the company also takes responsibility for development, testing, troubleshooting and future compatibility.

How Electrical Pack electrical single line diagram software works in Revit

Now that we’ve looked at four common approaches, let’s explore a model-driven option.

The Electrical Pack electrical single line diagram software connects single-line diagram creation directly to the Revit electrical model. The workflow covers diagram generation, component mapping, model synchronization and Revit documentation, which empowers engineers to create and maintain SLDs within the same project environment.

Let’s explore how these features work in greater detail.

1. Diagram generation. Electrical Pack can generate a comprehensive single-line diagram for a selected panel or switchboard. The tool automatically places and wires circuit breakers, feeders and loads based on the electrical system data. Thanks to this, engineers don’t need to manually create each connection.
2. Model synchronization. The SLD maintains a dynamic connection with relevant Revit parameters, meaning that circuit and rating changes can be reflected in the diagram. Engineers can keep the schematic up to date as the electrical design develops without rebuilding it as a separate drawing.
3. Revit documentation. Generated diagrams can be converted into Revit Drafting Views and added to project sheets and other documentation. Crucially, the finished schematic can be incorporated directly into the project’s existing documentation workflow.
4. Electrical data access. Electrical Pack’s System Browser shows feeder and branch-circuit relationships along with total voltage drop. The Property Palette provides access to relevant electrical parameters and gives engineers additional visibility into the electrical data behind the schematic.

Which approach makes sense for your Revit electrical diagrams?

Engineers rely on four main methods to create electrical riser diagrams and related single-line schematics in Revit but each comes with trade-offs:

• Detail lines are quick for simple diagrams but model changes have to be reflected manually.
• Isometric views and Revit filters use actual model elements, yet creating a conventional SLD requires additional view and filter setup.
• AutoCAD or linked DWG files offer mature drafting tools and familiar workflows, with the diagram remaining separate from Revit’s electrical data.
• Dynamo and pyRevit can automate custom workflows around Revit data but they require development expertise and ongoing maintenance.

Apart from that, there are also specialized Revit electrical tools like Electrical Pack, which connect single-line diagram generation to Revit’s electrical data and keep the workflow within the Revit environment. This solution by Atomatiq keeps schematics synchronized with the 3D model, reduces repetitive drafting and helps teams avoid coordination errors caused by outdated diagrams.

FAQ

What is the main problem with creating electrical riser diagrams in Revit?

Revit stores electrical system information such as equipment, circuits, loads, and panel relationships, yet turning those database relationships into a readable riser or single-line diagram still requires manual drafting or custom automation. Another challenge is keeping the graphical diagram synchronized with the underlying model to minimize MEP coordination issues when project details change.

What are the main ways to create an electrical riser diagram in Revit?

Four common approaches include detail lines, isometric or 3D views with filters, AutoCAD drawings linked into Revit, and custom Dynamo or pyRevit automation. Specialized Revit electrical tools such as Electrical Pack provide another option for teams that want to generate diagrams directly from Revit model data.

What should you consider when choosing electrical single line diagram software?

Look at how the software extracts its electrical data, how diagrams respond to model changes, how much manual drafting remains, and how the finished diagrams integrate into Revit documentation. For teams working primarily in Revit, a direct connection between the SLD and the electrical model is also critical.

Why do electrical engineers still use AutoCAD for riser diagrams?

AutoCAD, particularly AutoCAD Electrical, provides established drafting workflows and a large electrical symbol library. Autodesk lists 65,000+ intelligent electrical symbols in the AutoCAD Electrical toolset, which can make CAD-based schematic production familiar for electrical teams. The main limitation of an AutoCAD to Revit workflow is that the diagram and Revit model remain separate authoring environments.
